Emerald Heat pump

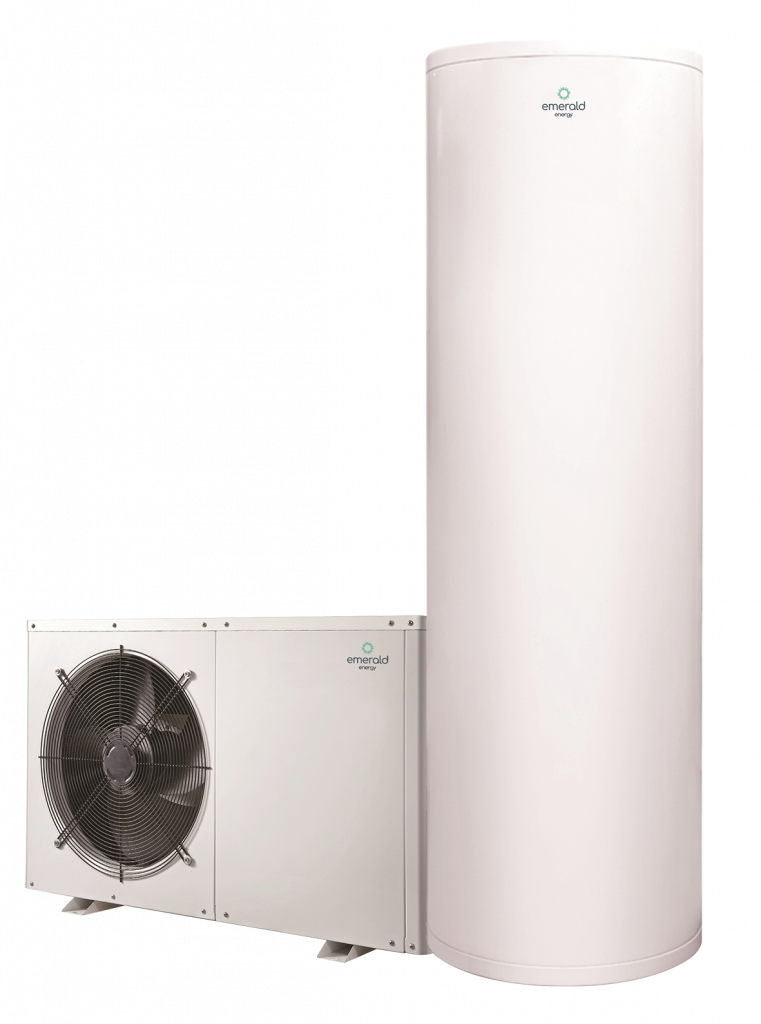

EMERALD HEAT PUMP AND TANK 200L, 300L AND OPTIONAL HEATER
Emerald Energy’s hot water heat pumps provide energy-efficient hot water all
year round. Unlike solar, there is no structural load on the roof. They can use
the same plumbing and electrical connections as an electric water heater –
making them an ideal upgrade from a standard electric water heater.
Both our refrigerant cycling heat pumps are available with an optional built-in
electric heater to boost hot water supply when needed.
- Optional built-in electric heater as backup
- R134a refrigerant
- Max. water output temperature: 60°C
- Automatic startup and shutdown
- Four-way valve for automatic defrosting
HIGH WATER TEMPERATURE AND LARGE WATER TANK DESIGN
200L and 300L big volume design ensure multi-point simultaneous use during peak water consumption.
ANTI-LEGIONELLA FUNCTION
Disinfection temperature 60~75oC
Unit without electric heater:
maximum disinfection temperature 65oC
Unit with electric heater:
maximum disinfection temperature 75oC
Two disinfection modes available:
Periodicity automatically disinfect
Manually disinfect
BLUE DIAMOND ENAMEL TANK
Blue Diamond enamel technology ensures the surface is clean and smooth and reduces dirt from adhering – keeping the tank cleaner and more hygienic over time.
SPLIT SYSTEM DESIGN
Due to the split system design, the water tank and outer unit are separate units and connect by two refrigerant pipes. The standard refrigerant piping length supplied is 1m. This will suit most applications, particularly residential installations. For commercial applications the water tank and outer unit may require greater distances apart. The refrigerant piping lengths can be increased. See below reequirments: Max. piping length: 20m Max. piping difference in height: 10m If the piping length were less than 10m, no additional refrigerant charge is required. If the piping length exceeds 10m, the an additional refrigerant charge of 20g/m is required.
SMART ENERGY PRODUCTS
HEAT PUMPS - REFRIGERANT CYCLING
1. Ambient temperature 19/15ºC(DB/WB), Initial water temperature 9ºC, Terminative water temp. 60ºC.
2. Ambient temperature 19/15ºC(DB/WB), Initial water temp. 15ºC, Terminative water temp. 55ºC.
SMART ENERGY PRODUCTS
HEAT PUMPS - REFRIGERANT CYCLING
AUSTRALIAN ENERGY SAVING SCHEMES
The Australian Government developed a series of state based energy-efficiency schemes to incentivise the adoption of smart-technology solutions to help reduce energy usage and the carbon footprint of businesses and households across Australia.
Emerald Planet works closely with government agencies to ensure our products are at the forefront of energy-efficient technology, and aligned to the benchmarks set by the
energy-efficiency schemes across Australia. Our hot water heat pumps are approved for installation within these government schemes.
HIGH SMALL-SCALE TECHNOLOGY CERTIFICATES (STCS)
Air source Heat Pumps are eligible for Small-Scale Technology Certificates (STCs) to encourage the installation of heat pump water heaters.

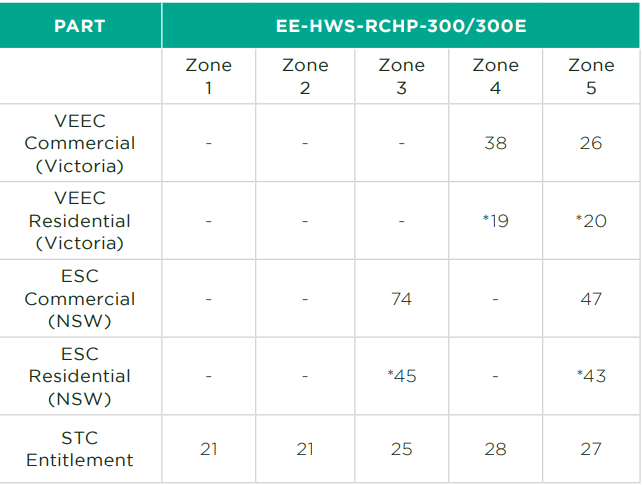

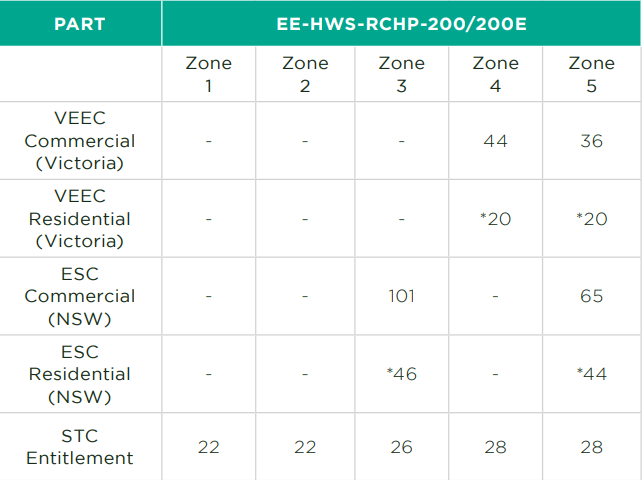

STC certificates can be traded in the Australian market – the higher the STC value the more money can be exchanged. 1 STC means 1MWh can be saved in 10 years. The higher the STC value, the more efficient the unit. The STC values are determined by the by Australia’s different temperature zones.
*All certificates have been calculated for the dates between the 1st Feb 2023 – 31st Jan 2024.
*VEEC’s & ESC’s Commercial certificates have been calculated when installing a new water tank and replacing an electric resistance boiler/heater of a 3.1 kW capacity or greater. For residential installations, the existing system size is not included in the calculations.
*Residential ESC’s & VEECS certificates have been submitted to the VEU and waiting for final approval.
